Waterproofing the ESCs

26 October 2026

The first step to building the ROV is to waterproof the ESCs. Two of them are 20A water-cooled ESCs. These are for the main drive motor. The third is a standard 40A ESC that will be adapted to water cooling with an aluminum water block.

Important Note: They are all bidirectional which is critical for ROV control.

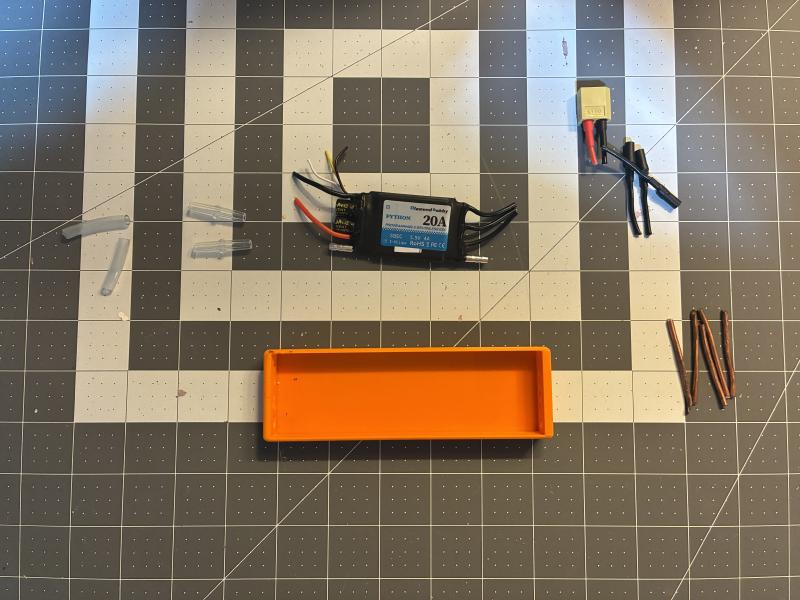

Alt text — Removing unnecessary connectors

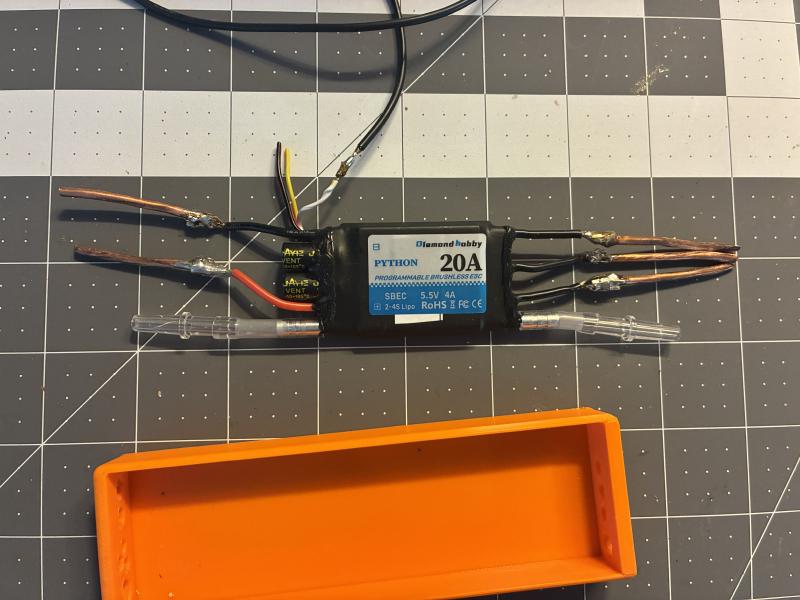

Alt text — Prepping the ESC. Note that only the signal wire is wired out. The 5V regulators on the ESCs are not needed

Alt text — Setting in the form

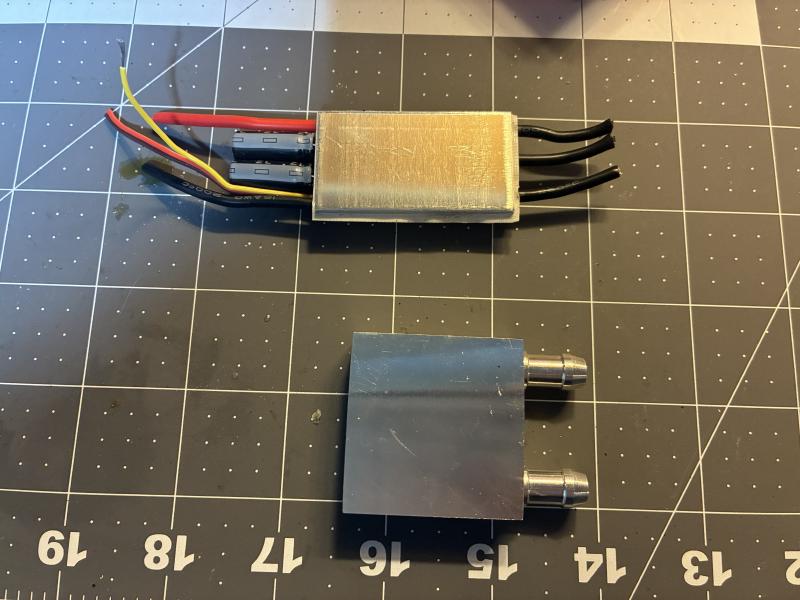

Alt text — Preparing the water block

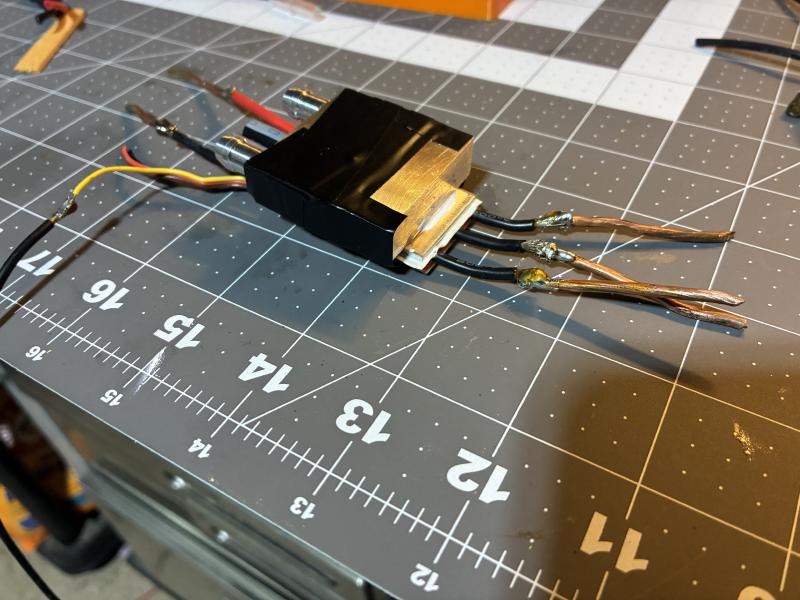

Alt text — Preparing the water block

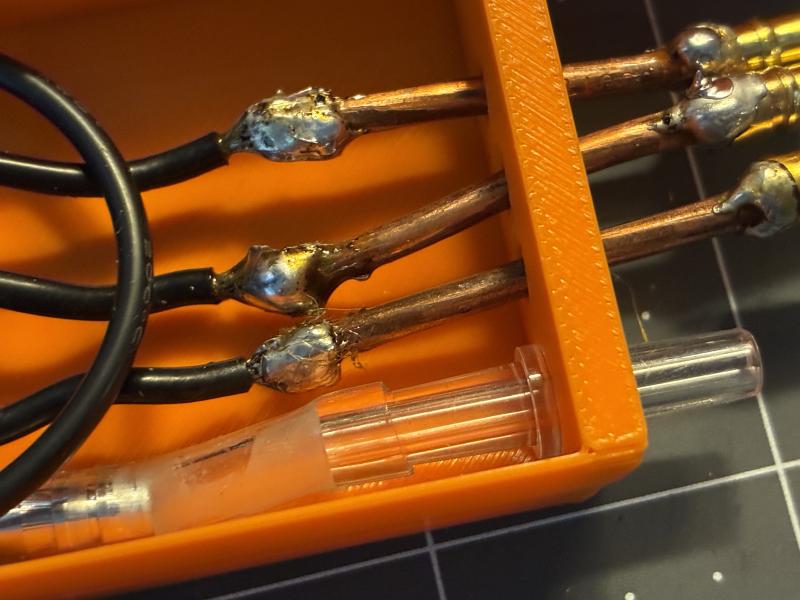

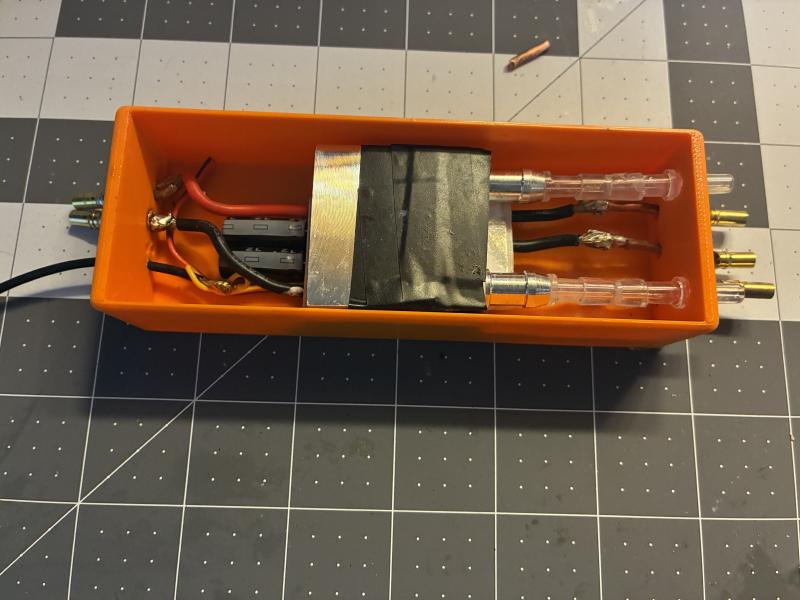

Alt text — Setting second ESC in form

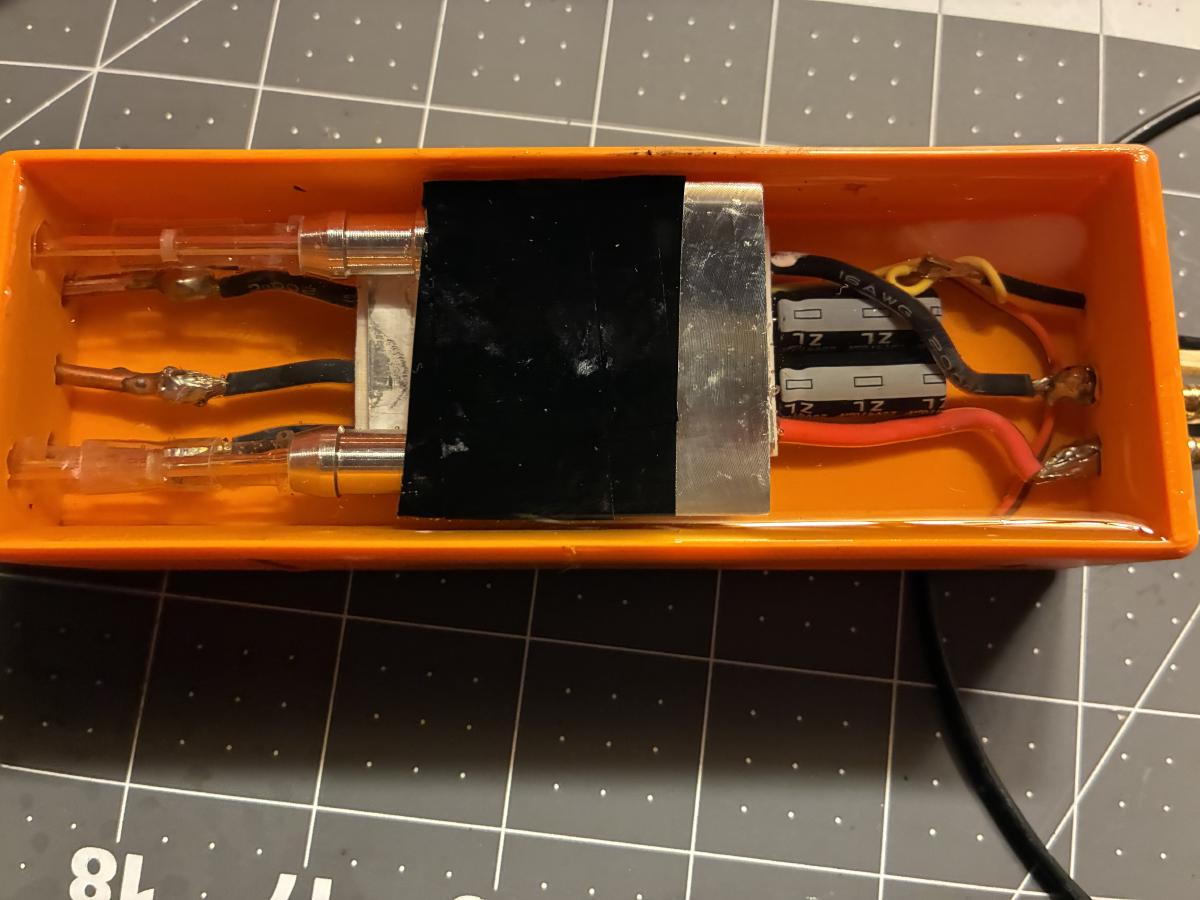

Alt text — Ready for epoxy

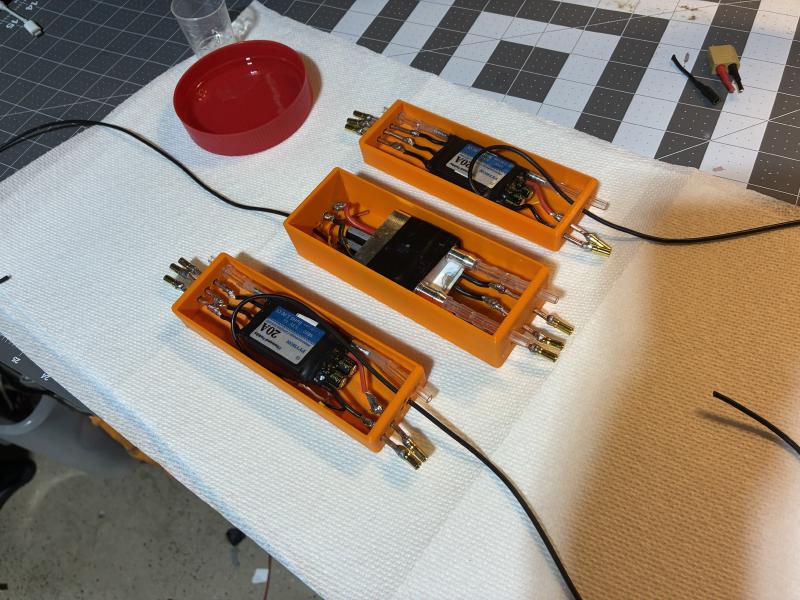

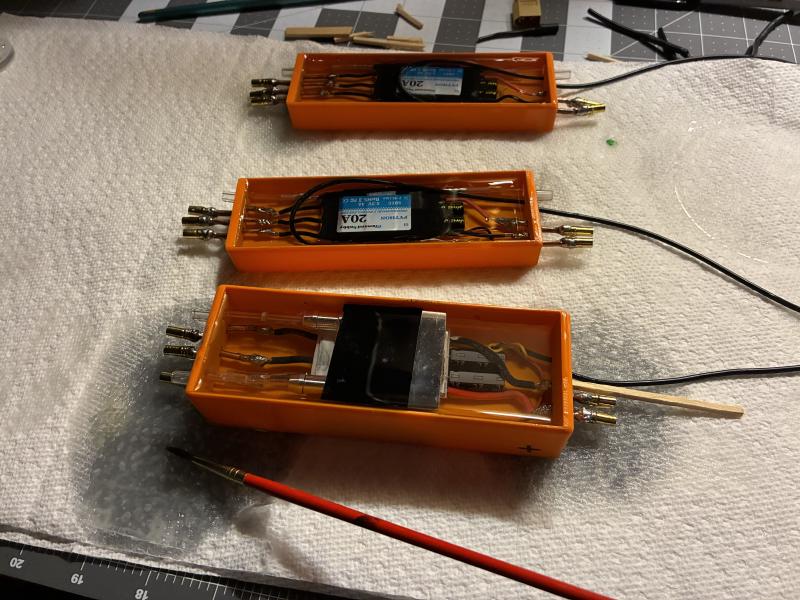

Alt text — Curing

Alt text — Finished Result
